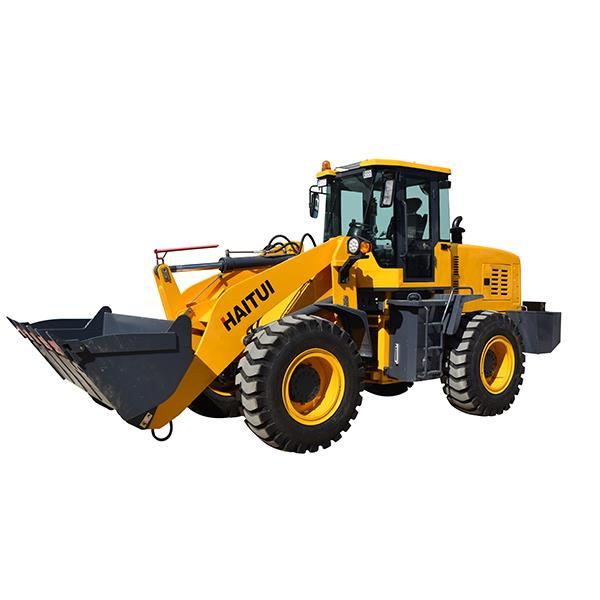

2.5ton Front End Loader
Model ZL932
Overview
2.5ton Front End Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 6500 kg; Overall Dimensions L×W×H 6200×2235×2940 mm; Bucket Capacity 1.3 m³; Rated Load 2500 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 6500 kg |
|---|---|
| Overall Dimensions L×W×H | 6200×2235×2940 mm |
| Bucket Capacity | 1.3 m³ |
| Rated Load | 2500 kg |
| Max Speed | 28 km/h |
| Wheel Base | 2450 mm |
| Wheel Tread | 1650 mm |
| Engine Model | YUNNEI 38GBZ / CUMMINS 4BT3.9-C100 |
| Rated Power | 76 KW / 74KW |
| Max Dumping Height | 3750 mm |
| Min Turning Radius | 5200 mm |
| Type of Transmission | Hydraulic Transmission box, F4+R4 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical / Hydraulic Joystick |
