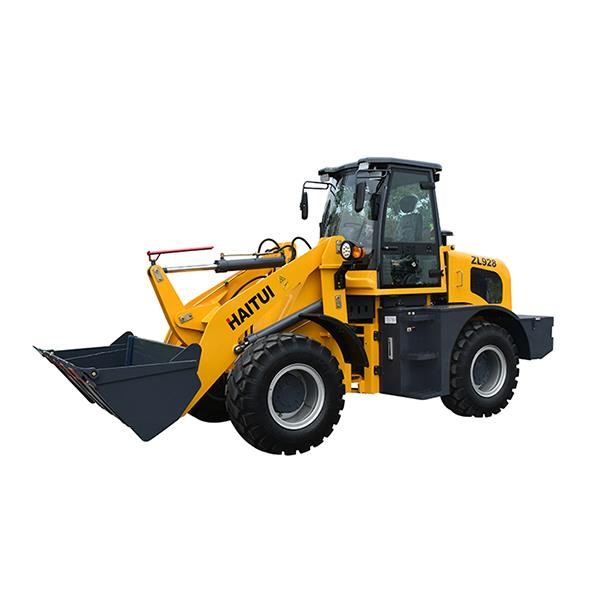

Euro Front Loader
Model ZL928D
Overview
Euro Front Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 5050 kg; Overall Dimensions L×W×H 5980×1940×2800 mm; Bucket Capacity 1.0 m³; Rated Load 1800--2000 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 5050 kg |
|---|---|
| Overall Dimensions L×W×H | 5980×1940×2800 mm |
| Bucket Capacity | 1.0 m³ |
| Rated Load | 1800--2000 kg |
| Max Speed | 25 km/h |
| Wheel Base | 2430 mm |
| Wheel Tread | 1540 mm |
| Engine Model | YunNei 38GBZ |
| Rated Power | 76KW |
| Max Dumping Height | 3200 mm |
| Min Turning Radius | 5000 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical / Hydraulic Joystick |
