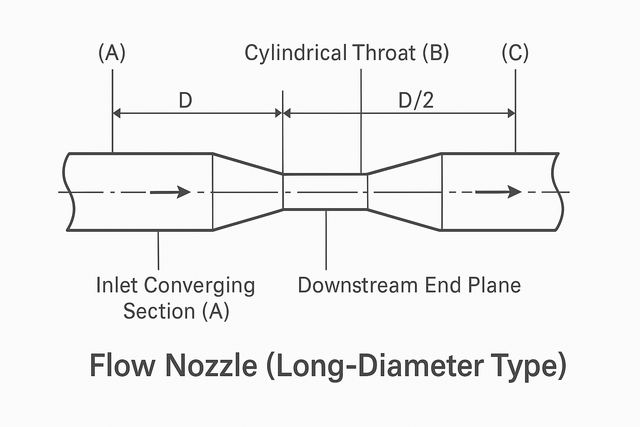

Flow Nozzles (Long-Diameter Type)
Overview
Flow Nozzles (Long-Diameter Type) supplied by Just Measure it. Key published specifications: Nominal Diameter (DN) 50 mm to 630 mm; Nominal Pressure (PN) ≤ 32 MPa; Orifice Ratio (β) 0.2 to 0.8; Reynolds Number Range 10,000 to 10,000,000. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Nominal Diameter (DN) | 50 mm to 630 mm |
|---|---|
| Nominal Pressure (PN) | ≤ 32 MPa |
| Orifice Ratio (β) | 0.2 to 0.8 |
| Reynolds Number Range | 10,000 to 10,000,000 |
| Measurement Accuracy | Class 0.5 or Class 1 |
| Pressure Tapping Method | D–D/2 (corner tapping and half diameter) |
