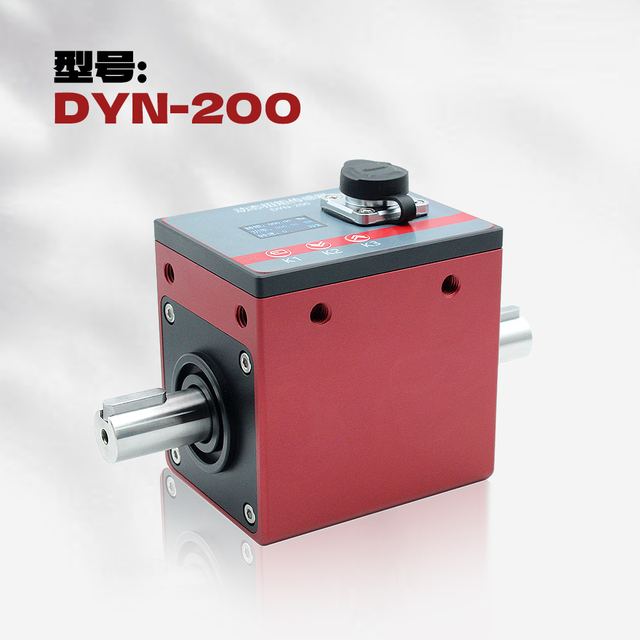

Dynamic Torque Sensor
Overview
Dynamic Torque Sensor supplied by Just Measure it. Key published specifications: Torque Range 0.1 Nm – 20000 Nm; Rated Speed Up to 8000 RPM (15000 max, custom); Output Signal 4–20 mA, 0–10V, ±5V, RS485; Accuracy ≥ 0.1%FS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Torque Range | 0.1 Nm – 20000 Nm |
|---|---|
| Rated Speed | Up to 8000 RPM (15000 max, custom) |
| Output Signal | 4–20 mA, 0–10V, ±5V, RS485 |
| Accuracy | ≥ 0.1%FS |
| Repeatability | 0.03%FS |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | ≤150 mA |
| Ambient Temperature | –20°C to +70°C |
| Communication Protocols | MODBUS RTU, ASCII/HEX Active Upload |
| Display | OLED, 128×64 pixels |
| Torque Range (Nm) | Shaft Ø (mm) |
| Total Length (L) | Weight (kg) |
