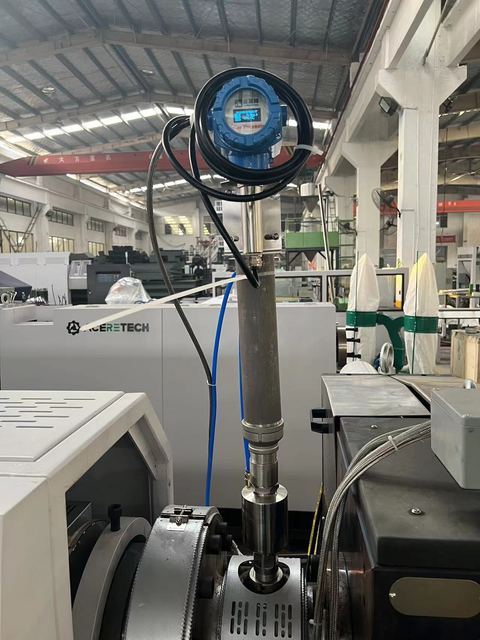

Online Viscometer
Overview
Online Viscometer supplied by Just Measure it. Key published specifications: Viscosity range 0-10mpa. s; Sensor pressure range <25Mpa customized; Signal response time 2s; Material 316 stainless steel (standard);. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Viscosity range | 0-10mpa. s |
|---|---|
| Sensor pressure range | <25Mpa customized |
| Signal response time | 2s |
| Material | 316 stainless steel (standard); |
| Optional other materials | 2507, C276, etc |
| Processing standard | high mirror surface |
| Power supply | 24V DC |
| Output | Viscosity 4-20 mADC |
| Protection level | IP67 |
| Explosion proof standard | ExdIIBT4 |
| Viscosity unit | 9 options available |
| Flange standard | HG20592, etc |
