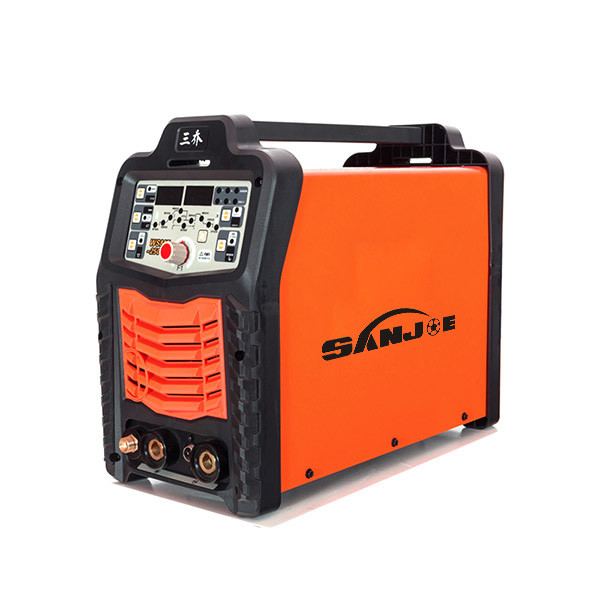

Digital TIG AC DC Welder Argon Arc Multi Process 10-200A Sanjoe
Model WSME250GD
Overview
Digital TIG AC DC Welder Argon Arc Multi Process 10-200A Sanjoe supplied by Foshan Sanqiao Welding Industry Co., Ltd. Key published specifications: Machine WSME250GD; Primary Input Voltage Single phase AC220V±15%; Supply Plug 16A; Rated Output TIG:10-200A / MMA:30-200A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine | WSME250GD |
|---|---|
| Primary Input Voltage | Single phase AC220V±15% |
| Supply Plug | 16A |
| Rated Output | TIG:10-200A / MMA:30-200A |
| Protection Class | IP21 |
| Insulation Class | F |
| Standard | CE |
| Materials | carbon steel/stainless steel/aluminum/special.. |
| Tig Function Type | AC/DC HF TIG |
| Tig Welding Current Range | 10-200A |
| Tig Welding Thickness Range | 0.5-5mm |
| Pre-Flow | 0-1S |
| Start Amps | 10-200A |
| Up Slope | 1-15S |
| Peak Amps | 10-200A |
| Down Slope | 0-25S |
| Finish Amps | 10-200A |
| Post-Flow | 0-10S |
| Pulse Frequency | 0.5-200Hz |
| Stick Welding Current Range | 30-200A |
| Stick Welding Thickness | 1-6mm |
| Arc Force | 1-100A |
| Dimensions | 520X290X460mm |
| Net Weight | 19kg |
| Input Voltage | AC220V±15% |
| Output Current | AC/DC |
| Output Amps | 200A |
| Certification | CCC,CE,RoHS |
