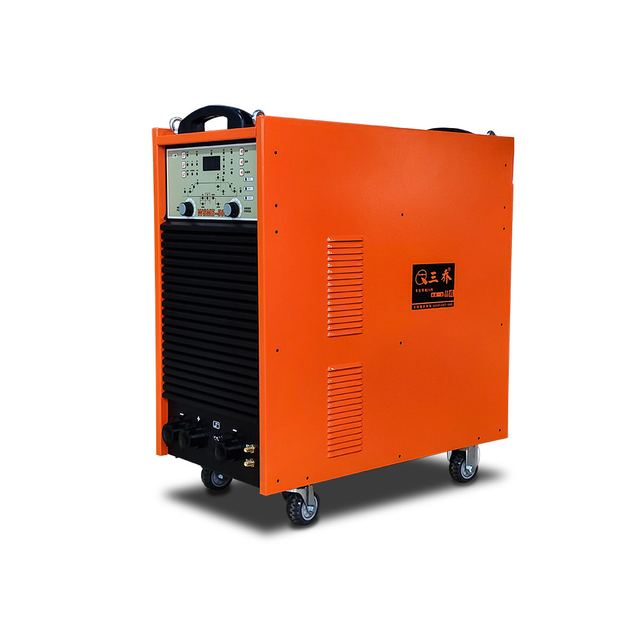

500A TIG AC DC ARGON ARC WELDING MACHINE
Model WSME-500
Overview
500A TIG AC DC ARGON ARC WELDING MACHINE supplied by Foshan Sanqiao Welding Industry Co., Ltd. Key published specifications: Technical Data WSME-500; Rated Iinput Voltage AC 380V 50/60Hz; Rated Input Power 25KVA; Output Current Range TIG: 10-500A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Technical Data | WSME-500 |
|---|---|
| Rated Iinput Voltage | AC 380V 50/60Hz |
| Rated Input Power | 25KVA |
| Output Current Range | TIG: 10-500A |
| Arcing method | HF |
| Welding Thickness | 0.5-20mm |
| Machine Dimensions | 735 x 385 x 880mm |
| Net Weight | 112kg |
| Input Voltage | AC380±15% |
| Output Current | AC/DC |
| Amperage | 500A |
| Certification | CCC,CE,RoHS |
