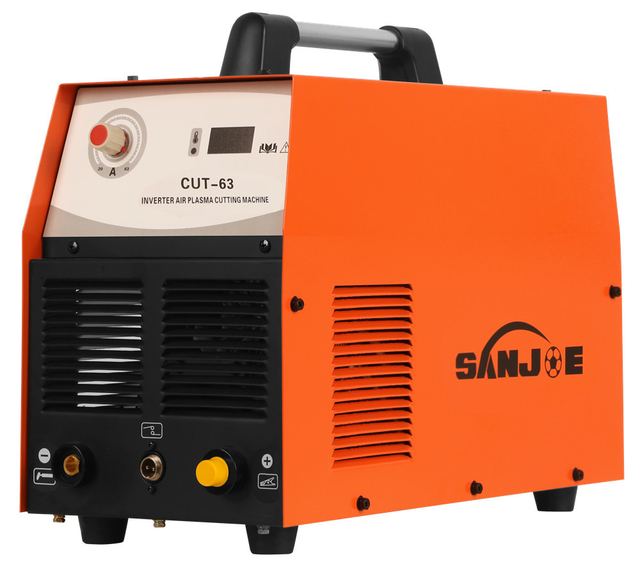

Inverter IGBT 63A Air Plasma Cutting Machine High Frequency
Model CUT63
Overview
Inverter IGBT 63A Air Plasma Cutting Machine High Frequency, listed by Foshan Sanqiao Welding Industry Co., Ltd in Foshan, Guangdong. The listing gives input voltage AC380±15%, rated input power 8.4KVA and output current range CUT: 25-63A.
Technical specifications
| Input Voltage | AC380±15% |
|---|---|
| Rated Input Power | 8.4KVA |
| Output Current Range | CUT: 25-63A |
| Quality Cutting Thickness | 15mm |
| Max. Thickness | 23mm |
| Air Pressure | 5KGF/CM² |
| Machine Dimension | 535x305x470mm |
| Net Weight | 16.2kg |
| Certification | CCC,CE,RoHS |
