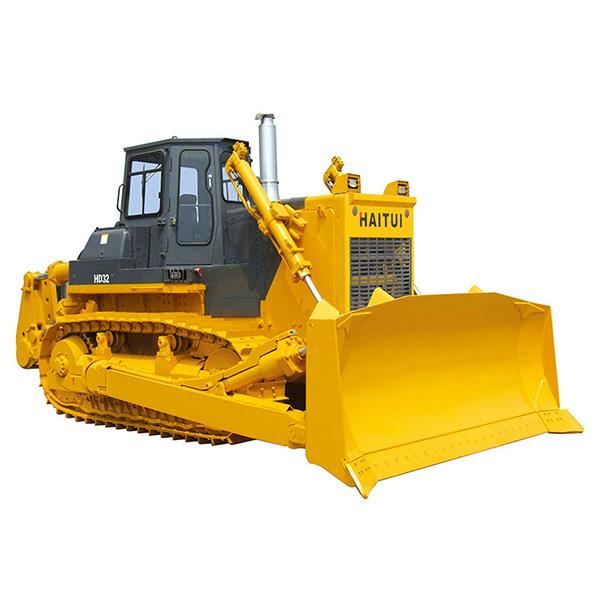

D8 Crawler Bulldozer
Overview
D8 Crawler Bulldozer supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Bulldozers. Key published specifications: Operating Weight 37200 kg; Bore × Stroke Φ139.7×152.4 mm; Piston Displacement 14.01 L; Rated Power 257 KW (238HP) @2000 rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 37200 kg |
|---|---|
| Bore × Stroke | Φ139.7×152.4 mm |
| Piston Displacement | 14.01 L |
| Rated Power | 257 KW (238HP) @2000 rpm |
| Max Torque | 1440 N·m @1400 rpm |
| Fuel Consumption | 245 g/kW·h |
| 终传动 Final drive | 2-stage speed reduction of spur gear, splash lubrication |
| No. of Carrier Rollers | 2 each side |
| No. of Track Rollers | 7 each side |
| No. of Track Shoes | 41 each side |
| Track Shoe type | Single Grouser |
| Width of Track shoe | 560 mm |
| Pitch | 228.6 mm |
| Track Gauge | 2140 mm |
| Ground Pressure | 0.105 Mpa |
| Pump Type | Gear Pump |
| Displacement | 355 L/Min |
| Bore of Working Cylinder | 140 mm × 2 |
| Max lift above ground | 883 mm |
| Weight of 3-shank ripper | 3802 kg |
| Weight of 1-shank ripper | 3252 kg |
| Type number | HD32 |
| Weight | 37.2ton |
