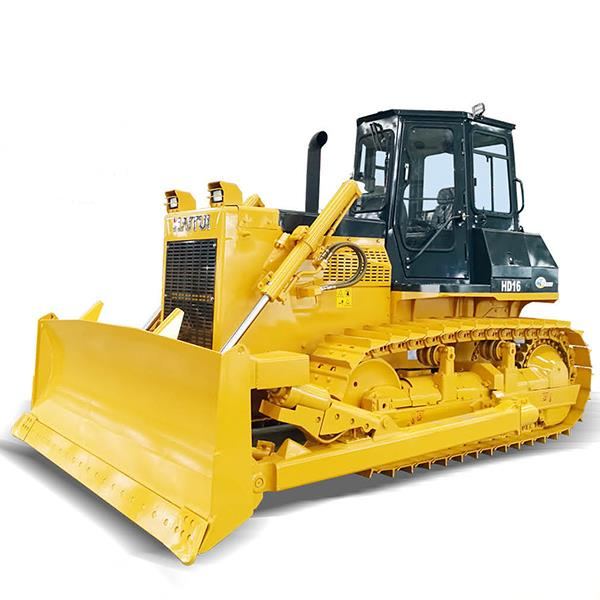

D6 Crawler Bulldozer
Overview
D6 Crawler Bulldozer supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Bulldozers. Key published specifications: Operating Weight 17000 kg; Type Water-cooled, in-line, 4-stroke,direct injection; Bore × Stroke Φ126×130 mm; Piston Displacement 9.726 L. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 17000 kg |
|---|---|
| Type | Water-cooled, in-line, 4-stroke,direct injection |
| Bore × Stroke | Φ126×130 mm |
| Piston Displacement | 9.726 L |
| Rated Power | 131 KW (178HP) @1850 rpm |
| Max Torque | 765 N·m @1300 rpm |
| Fuel Consumption | 214 g/kW·h |
| Final drive | 2-stage speed reduction of spur gear, splash lubrication |
| No. of Carrier Rollers | 2 each side |
| No. of Track Rollers | 6 each side |
| No. of Track Shoes | 37 each side |
| Track Shoe type | Single Grouser |
| Width of Track shoe | 510 mm |
| Pitch | 203.2 mm |
| Track Gauge | 1880 mm |
| Ground Pressure | 0.067 Mpa |
| Pump Type | Gear Pump |
| Displacement | 243 L/Min |
| Bore of Working Cylinder | 110 mm × 2 |
| Max lift above ground | 592 mm |
| Weight of 3-shank ripper | 1667 kg |
| Type number | HD16 |
| Weight | 17ton |
