Overview

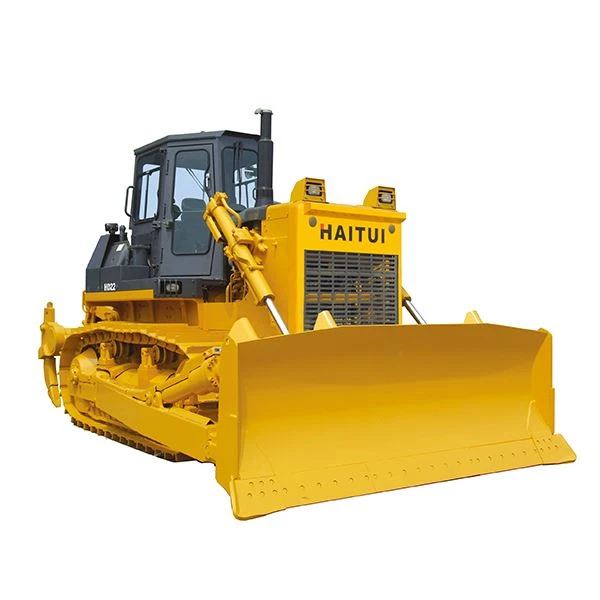

D75 Hydraulic Crawler Bulldozer supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Bulldozers. Key published specifications: Operating Weight 23500 kg; Bore × Stroke Φ139.7×152.4 mm; Piston Displacement 14.01 L; Rated Power 175 KW (238HP) @1800 rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Operating Weight	23500 kg
Bore × Stroke	Φ139.7×152.4 mm
Piston Displacement	14.01 L
Rated Power	175 KW (238HP) @1800 rpm
Max Torque	1030 N·m @1300 rpm
Fuel Consumption	205 g/kW·h
Final drive	2-stage speed reduction of spur gear, splash lubrication
No. of Carrier Rollers	2 each side
No. of Track Rollers	6 each side
No. of Track Shoes	38 each side
Track Shoe type	Single Grouser
Width of Track shoe	560 mm
Pitch	216 mm
Track Gauge	2000 mm
Ground Pressure	0.077 Mpa
Pump Type	Gear Pump
Displacement	262 L/Min
Bore of Working Cylinder	120 mm × 2
Max lift above ground	555 mm
Weight of 3-shank ripper	2495 kg
Weight of 1-shank ripper	2453 kg
Type number	HD22
Weight	23.5ton
