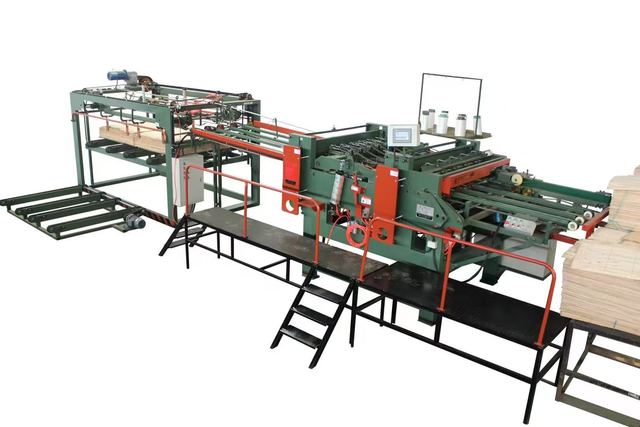

Core Veneer Composer Machine
Overview
Core Veneer Composer Machine supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Core Veneer Thickness 1.0–3.6 mm; Transfer Speed 0–35 m/min (adjustable); Working Efficiency 300–360 pcs/h (finished jointed veneer); Total Power 35 kW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core Veneer Thickness | 1.0–3.6 mm |
|---|---|
| Transfer Speed | 0–35 m/min (adjustable) |
| Working Efficiency | 300–360 pcs/h (finished jointed veneer) |
| Total Power | 35 kW |
| Total Weight | 5,500 kg |
| Drive Type | SERVO |
| Overall Dimensions (L×W×H) | 12,500 × 4,000 × 2,480 mm |
| Core Composer Dimensions (L×W×H) | 4,040 × 2,510 × 1,960 mm |
| Stacker Dimensions (L×W×H) | 3,400 × 2,200 × 2,480 mm |
| Knife Length | 1,400 mm |
| Finished Core Lateral Move | Yes |
| Speed Adjust | Yes |
| Finished Veneer Counter | Yes |
| Glue Groove Heating | 9 kW |
| AC Motor | 1 kW |
| Front Drive | SINEE SERVO Motor 3 kW |
| First Rear Drive | SINEE SERVO Motor 3 kW |
| Second Rear Drive | SINEE SERVO Motor 3 kW |
| Fixed Length Knife | SINEE SERVO Motor 3 kW |
| Finished Core Convey Motor | 0.75 kW |
| Stacker Up & Down Motors | 2.2 kW + 2.2 kW |
| Stacker Top Convey Motor | 1.1 kW |
| Stacker Bottom Convey Motor | 0.75 kW |
| Lift Motor | 3 kW |
