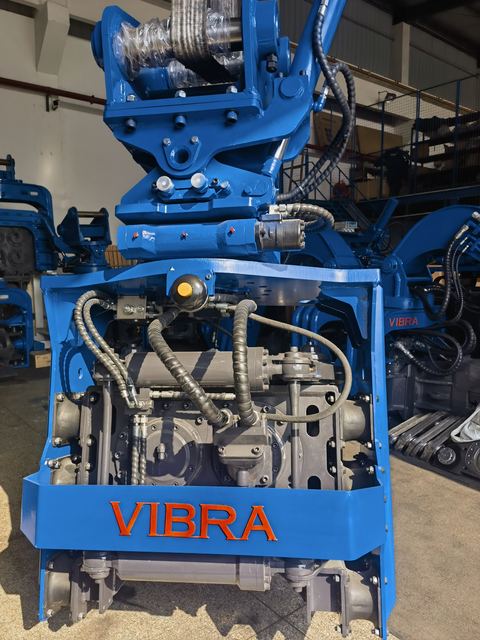

Compact Confined Spaces Pile Driver

Model SV-200

Compact Confined Spaces Pile Driver

Overview

Compact Confined Spaces Pile Driver supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Eccentric Moment 4.6 Kg·m; Centrifugal Force 459 KN; Frequency 2,300 – 3,000 Rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationISO 9001:2015
Eccentric Moment4.6 Kg·m
Centrifugal Force459 KN
Frequency2,300 – 3,000 Rpm
Side Clamp Force335 KN
Bottom Clamp Force385 KN
Operation Pressure32 MPa
Size LxWxH1,220 × 1,260 × 2,150 Mm
Applicable Excavator20 – 25 Tons
Frequency range2300 – 3000 rpm
Operating pressure32 MPa
Flow requirement (merged)170 – 230 L/min
Rotation / tilt360° continuous / ±30°
Dimensions (L×W×H)1220×1260×2150 mm
Weight (incl. connector & clamp)2280 kg
Suitable excavator20 – 25 tons
Min. headroom (bottom clamp)3.5 m
