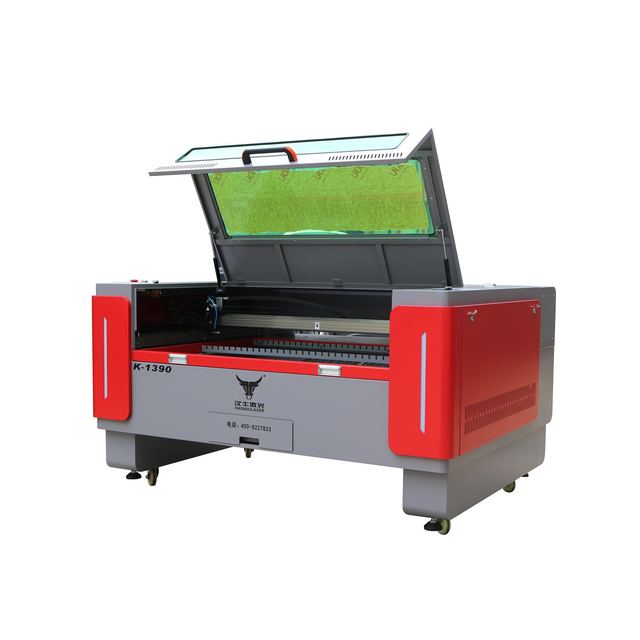

CO2 Laser Machine Cutting And Engraving Big Power High Precision Wood Fabric
Model K1390
Overview
CO2 Laser Machine Cutting And Engraving Big Power High Precision Wood Fabric supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Engraving Area 1300 * 900 mm; Laser Power 150 W; Engraving Speed 0 – 64,000 mm/min; Resolution 0.025 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Engraving Area | 1300 * 900 mm |
|---|---|
| Laser Power | 150 W |
| Engraving Speed | 0 – 64,000 mm/min |
| Resolution | 0.025 mm |
| Minimum Character Size | Chinese: 2 mm / Letters: 1 mm |
| Resetting Positioning Accuracy | ±0.01 mm |
| Transmission System | Linear guide |
| Operating Temperature | 0 – 45°C |
| Operating Humidity | 5% – 95% (non-condensing) |
| Power Supply | AC220V ±10%, 50/60Hz |
| Cooling Method | Water cooling |
| Total Power Consumption | < 1500 W |
| Net Weight | 400 kg |
| Machine Dimensions | 1950 * 1600 * 1300 mm |
| Positioningaccuracy | ±0.01mm |
| Repeat Position Accuracy | 0.025mm |
| Cooling Mode | Water Cooling |
| Application | CO2 Laser Cutting |
| Cutting Area | 1300*900mm |
| Cutting Materials | Non Metal, Acrylic, Leather, Wood |
