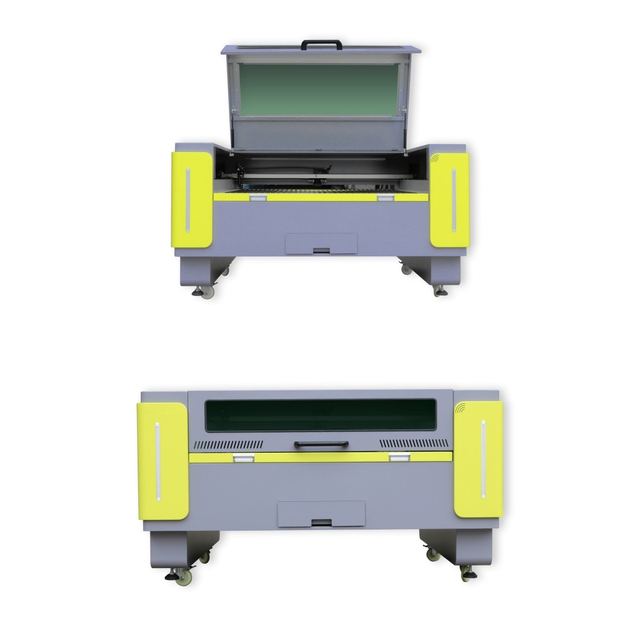

CNC CO2 Laser Cutting Machine 1390 1610 1325 Leather Laser Engraver Machine 150w 300w
Model K1325
Overview
CNC CO2 Laser Cutting Machine 1390 1610 1325 Leather Laser Engraver Machine 150w 300w supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Engraving Area 1300*2500mm; Laser power 150w; Engraving speed 0-64000mm/min; Resolution 0.025mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Engraving Area | 1300*2500mm |
|---|---|
| Laser power | 150w |
| Engraving speed | 0-64000mm/min |
| Resolution | 0.025mm |
| Minimum shaping character | Chinese Character:2mm/Letter:1mm |
| Resetting Positioning accuracy | ±0.01mm |
| Operating temperature | 0-45°c |
| Operating humidity | 5%-95%(free of condensed water) |
| Graphic format supported | BMP.GIF.JPG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF |
| Power supply | AC220V±10%.50Hz/60Hz |
| Cooling method | Water cooling |
| Gross power | <1800w |
| Net weight | 680KG |
| Dimension | 1950mm*3400mm*1150mm |
| Max cutting thickness | 30mm(for acrylic),1.8mm(for stainless steel) |
| Cutting Materials | Acrylic,wood,rubber,bamboo |
| Control System Brand | RuiDa RD Work |
| Control Softwear | RD System |
| Cooling | Water Colling |
| Cutting Speed | 0-500mm/s |
| Electric Power | 380V 50Hz |
| Speed | 60000mm/min |
| Technical Parameters | Engraving Area |
