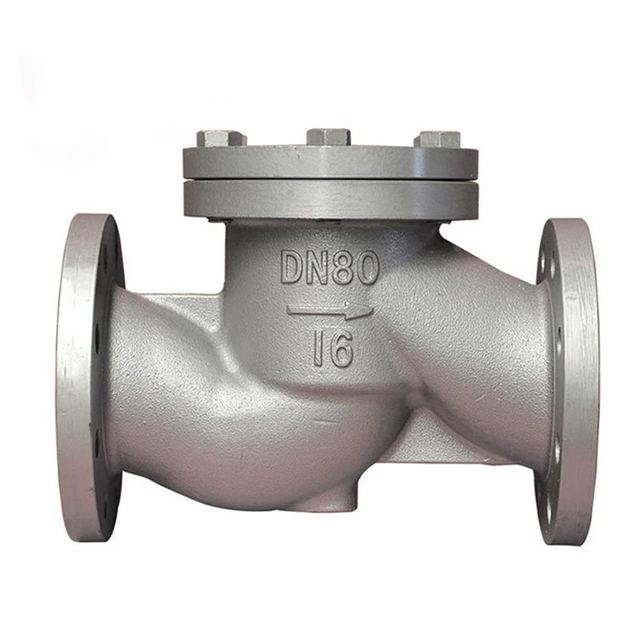

Check Valve
Overview
Check Valve supplied by Wenzhou Zhongtou Valve Co., Ltd. Key published specifications: Size 1/2''~12'' ( DN15~DN300); Working Pressure 1.0~42Mpa; Connection Ends Flange; Working Temp. -40ºC~300ºC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 1/2''~12'' ( DN15~DN300) |
|---|---|
| Working Pressure | 1.0~42Mpa |
| Connection Ends | Flange |
| Working Temp. | -40ºC~300ºC |
| Structure | Plug |
| Inspection & Testing | API598;API-6D |
| Pressure Rating | PN10-PN100, 150LB-1500LB |
| Standard | ANSI BS DIN JIS |
| Customized support | OEM, ODM |
| Certificate | ISO9001:2008 CE |
| Port Size | Standard, 1/2' -2'(DN15-50). Structure:Check. Body:CF8M,CF8,WCB. Gasket:PTFE |
