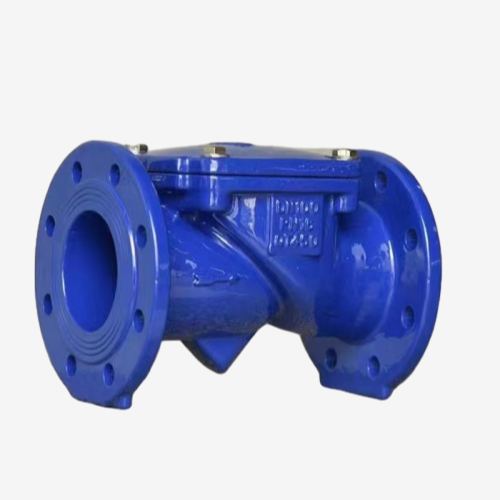

Rubber Lined Check Valve
Overview
Rubber Lined Check Valve supplied by Vcore Valve co., Ltd. Key published specifications: Item Specification / Material; Size Range DN50 – DN2000 (2” – 80”); Pressure Rating PN10 / PN16 / Class 150; Temperature Range -20°C to +120°C (depending on lining material). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Item | Specification / Material |
|---|---|
| Size Range | DN50 – DN2000 (2” – 80”) |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Temperature Range | -20°C to +120°C (depending on lining material) |
| Disc Material | Stainless steel 304/316, Ductile iron with epoxy coating |
| Stem/Pin Material | Stainless steel 420/431 |
| Lining Material | EPDM, NBR, Neoprene, PTFE |
| Sealing Class | Bi-directional zero leakage |
| Connection | Wafer or Flanged (ANSI/DIN/JIS) |
