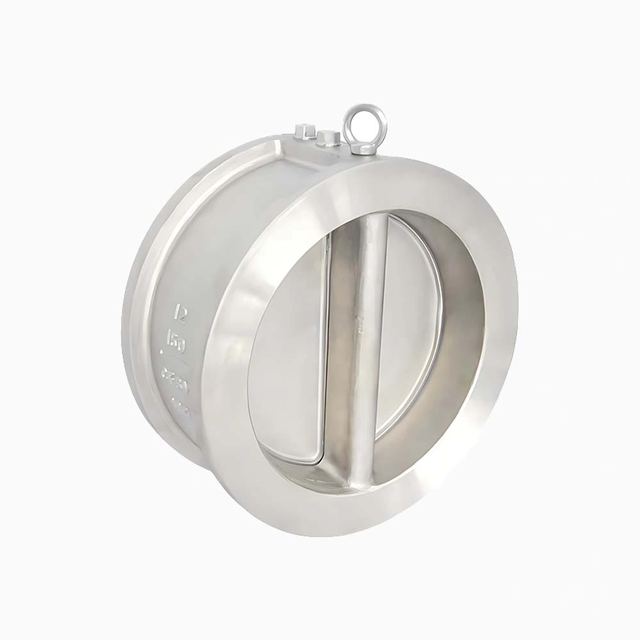

Dual-Plate Check Valves
Overview
Dual-Plate Check Valves supplied by TIANYU VALVE. Listed under Check Valves. Key published specifications: Valve size 2 “~48” (DN 50~DN 1200); Pressure range Class150~2500 (PN 16 to PN 420); Applicable temperature -29°C~ + 560°C; Design criteria API 594, ASME B16.34, API 6D. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Valve size | 2 “~48” (DN 50~DN 1200) |
|---|---|
| Pressure range | Class150~2500 (PN 16 to PN 420) |
| Applicable temperature | -29°C~ + 560°C |
| Design criteria | API 594, ASME B16.34, API 6D |
| Test criteria | API 598, EN12266-1, and ISO 5208 |
| Face to face criteria | API 594, API 6D, E N 558-1 |
| Nominal Diameter | 10 inches (DN 250) |
| Rated pressure | 150 LB |
| Material | WCB |
| End Connection | RF FLANGE |
| Flange standard | ASME / |
