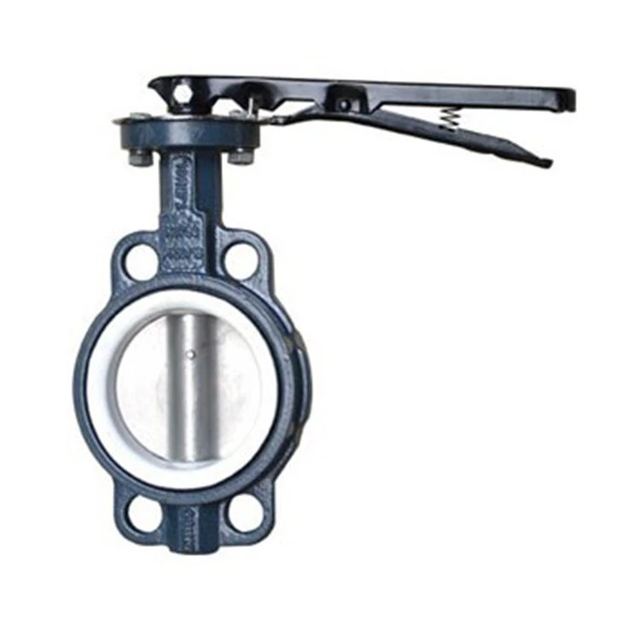

Butterfly Valve
Overview
Butterfly Valve supplied by Wenzhou Zhongtou Valve Co., Ltd. Key published specifications: Customized support OEM; Application General; Power Manual; Port Size DN50-DN1200. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Customized support | OEM |
|---|---|
| Application | General |
| Power | Manual |
| Port Size | DN50-DN1200 |
| Structure | BUTTERFLY |
| Design confirms | API 609, BS EN 593, MSS SP-67, BS5155 |
| Tightness check | API 598, ISO 5208, EN12266-1, DIN3230, BS5155 |
| Working temperature | -45 to 200 Celsius |
| Body/Disc:Cast Iron(CI) | GG25,Ductile Iron(DI):GGG50 |
| Bushing | PTFE, Nylon, Lubricated Bronze |
| Certification | ISO CE |
