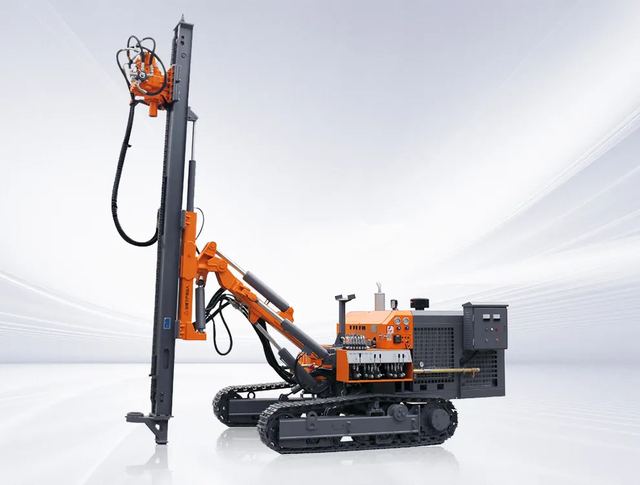

Anchor Drilling Rig ZGYX420ST
Overview
Anchor Drilling Rig ZGYX420ST, from D Miningwell in Quzhou, Zhejiang. Published figures include weight 5340kg, engine model YC4DK-80 and engine rated power 58KW.
Technical specifications
| Weight | 5340kg |
|---|---|
| Engine Model | YC4DK-80 |
| Engine rated power | 58KW |
| Motor power | 55KW |
| Drilling depth | 60m |
| Drill pipe type | Φ76*3000mm |
| The hole dilameter | Φ90-203mm |
| Torque (max) | 5000N.m |
| Swing speed(rpm) | 60-140r/min |
| Feed force | 35kN |
| Rig lifting force | 80kN |
| Mode of advancement | Cylinder Chain |
| Walking speed(km/h) | 2.5km/h |
| Transport dimension | 6500*2280*2400mm |
| Drilling Hole Diameter | Φ90-203mm |
