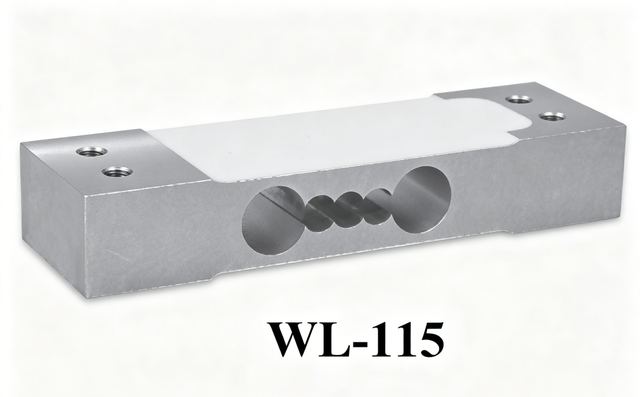

Aluminum Alloy Single Point Load Cell 35-50kg IP66 With Parallel Use(WL-115)
Model WL-115
Overview
Aluminum Alloy Single Point Load Cell 35-50kg IP66 With Parallel Use(WL-115) supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity Range 35kg To 50kg; Recommended Excitation 5~15VDC; Material Aluminum Alloy; Rated Output 2.0±10%mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity Range | 35kg To 50kg |
|---|---|
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Rated Output | 2.0±10%mV/V |
| Combined Error | 0.017% F.S. |
| IP Class | IP66 (customizable) |
| Parallel Use | Good Output Consistency |
| Cable Length | Φ4×1500mm (customizable) |
| Safe Overload | 150%F.S. |
| Operation Temp | -20~60°C |
| Zero Balance | ±0.02%mV/V |
| Capacity | 35~50kg |
| Non-linearity | 0.017%F.S |
| Repeatability | 0.017%F.S. |
| Insulation Resistance | >5000M2/100VDC |
| Cable size | Ф 4x3000mm(Customizable) |
| Certification | CNAS |
