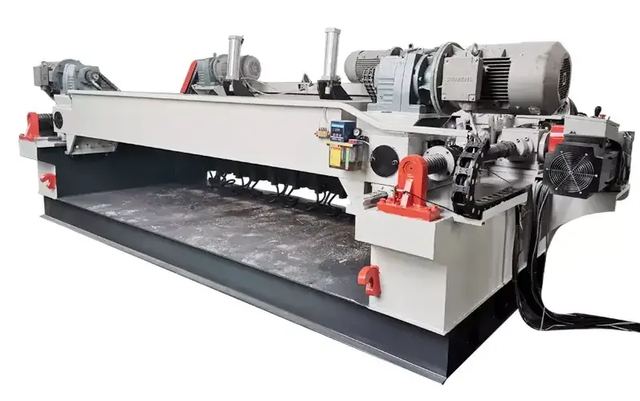

8ft Plywood Face Veneer Peeling Machine from
Overview
8ft Plywood Face Veneer Peeling Machine from supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Length of peeler log 1970–2600 mm; Maximum diameter of peeler log 500 mm (core left: 30 mm); 500 mm (core left 30 mm); Rotary cutting thickness range 0.3–4 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Length of peeler log | 1970–2600 mm |
|---|---|
| Maximum diameter of peeler log | 500 mm (core left: 30 mm) |
| 500 mm (core left | 30 mm) |
| Rotary cutting thickness range | 0.3–4 mm |
| Linear speed of host machine | 45–120 m/min (adjustable) |
| Main motor power | 7.5 kW × 4 (Host) |
| Feeding motor power | 11 kW (AC motor) |
| Cutting motor power | 4 kW (AC motor) |
| Roller motor power | 4 kW |
| Double roller diameter | 120 mm |
| Power | 7.5 kW × 2 |
| Single roller diameter | 106 mm |
