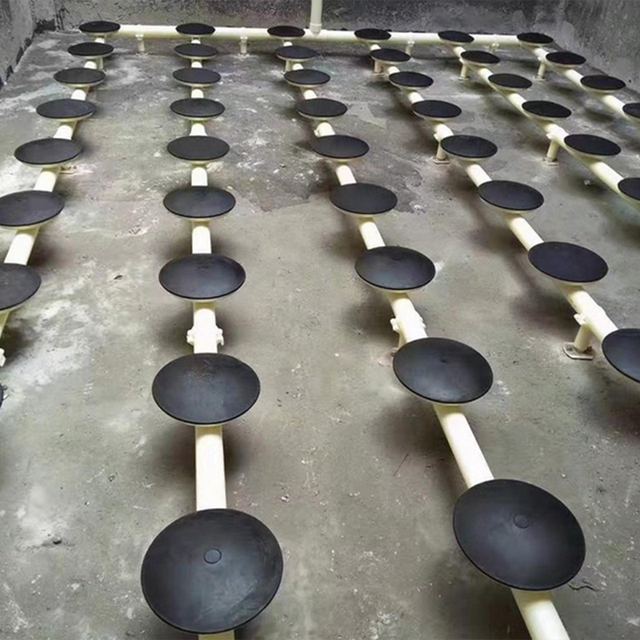

80-100µm Fine Bubble Membrane Diffuser Tube Or Disc Type High Oxygen Transfer Efficiency
Overview
80-100µm Fine Bubble Membrane Diffuser Tube Or Disc Type High Oxygen Transfer Efficiency, from Jiangsu Ponis Environmental Technologies Co., Ltd in Yixing, Jiangsu. Published figures include certification CE,UL, aerator dimensions φ215mm, φ260mm, φ300mm and air flow rate 1.5-3m³/h.
Technical specifications
| Certification | CE,UL |
|---|---|
| Average Pore Size Of Aeration Membrane | 80-100µm |
| Aerator Dimensions | φ215mm, φ260mm, φ300mm |
| Air Flow Rate | 1.5-3m³/h |
| Aeration Resistance | 180-280mmH₂O |
| Oxygenation Capacity | 0.112-0.185kgO²/m³/h |
| Service Area | 0.25-0.55㎡/unit, 0.35-0.75㎡/unit |
| Total Oxygen Transfer Coefficient | kla (20°C) 0.204-0.337min-1 |
| Oxygenation Power Efficiency | 4.46-5.19kgO²/kWh |
