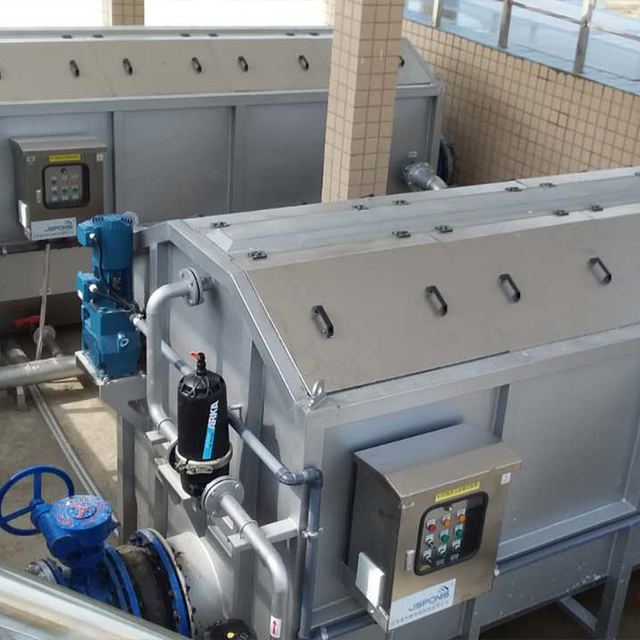

Industrial Continuous Rotary Disk Filter For Wastewater Treatment & Zero Liquid Discharge System
Overview
Industrial Continuous Rotary Disk Filter For Wastewater Treatment & Zero Liquid Discharge System supplied by Jiangsu Ponis Environmental Technologies Co., Ltd. Key published specifications: Certification CE,UL; Filtration Area 4.5m2/single Disc; Operating Hours 24 Hours Continuous Operation; Operating Costs Low. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE,UL |
|---|---|
| Filtration Area | 4.5m2/single Disc |
| Operating Hours | 24 Hours Continuous Operation |
| Operating Costs | Low |
| Control Method | Fully Automatic |
| Processing flow | 28~35m³/h (single disk) |
| Filter plate diameter | 2000mm |
| Filtration rate | 8-15m/h/m² |
| Influent water quality | SS≤30mg/L |
| Outlet water quality | SS≤10mg/L |
| Filter disc material | Reinforced engineering plastic |
| Filter cloth material | Stainless steel, PE polyester |
| Body material | Stainless steel |
| Backwash drive power | 1.5KW |
| Backwash pump power | 5-11KW |
| Washing water volume | 30L/1 tray/1 time |
| Cleaning pressure | 6-8 bar |
| Head loss | 50-200mm |
| Backwash cycle | 1-3min (or continuous) |
| Working pressure | Gravity filtration (or continuous) |
| Filtration form | Cement tank type, box type |
