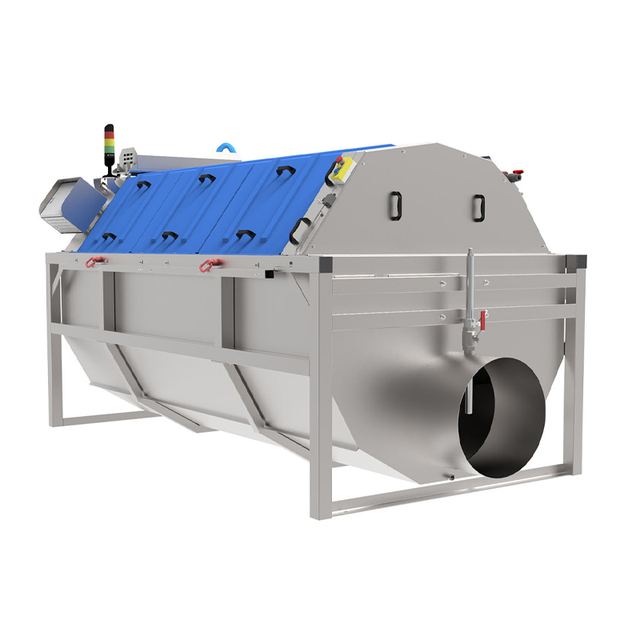

Intelligent Rotary Disc Filter Free System Design & Sizing For Wastewater Treatment
Overview
Intelligent Rotary Disc Filter Free System Design & Sizing For Wastewater Treatment supplied by Jiangsu Ponis Environmental Technologies Co., Ltd. Key published specifications: Certification CE,UL; Cleaning Pressure 6-8 Bar; Backwash Pump Power 5-11KW; Body Material Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE,UL |
|---|---|
| Cleaning Pressure | 6-8 Bar |
| Backwash Pump Power | 5-11KW |
| Body Material | Stainless Steel |
| Filtration Form | Cement Tank Type, Box Type |
| Working Pressure | Gravity Filtration (or Continuous) |
| Processing flow | 28~35m³/h (single disk) |
| Filter plate diameter | 2000mm |
| Filtration area | 4.5m²/single disc |
| Filtration rate | 8-15m/h/m² |
| Influent water quality | SS≤30mg/L |
| Outlet water quality | SS≤10mg/L |
| Filter disc material | Reinforced engineering plastic |
| Filter cloth material | Stainless steel, PE polyester |
| Backwash drive power | 1.5KW |
| Washing water volume | 30L/1 tray/1 time |
| Head loss | 50-200mm |
| Backwash cycle | 1-3min (or continuous) |
