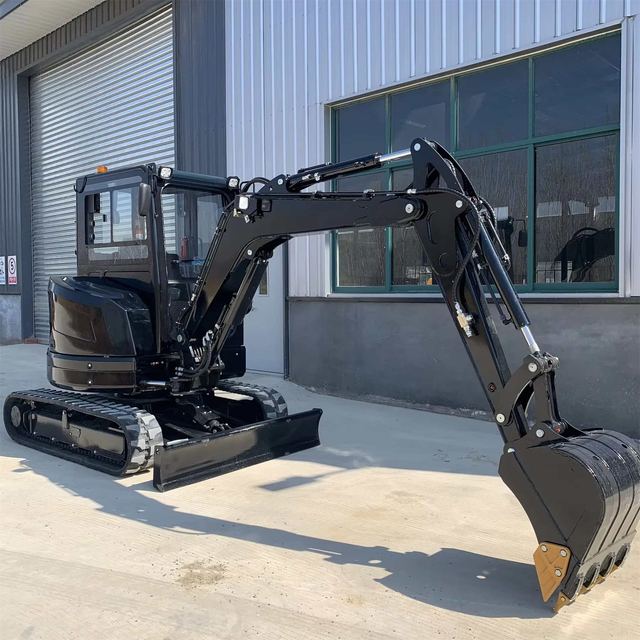

3.5-Ton Small Excavator

3.5-Ton Small Excavator

Overview

SHANDONG GONGWO MACHINERY CO., LTD in Laizhou, Shandong lists 3.5-Ton Small Excavator under Excavators. The listing gives emission standard Euro 5/EPA4, make/model KUBOTA/D1703 and power/rotation speed 18.5kw (25HP)/2200rpm.

Technical specifications

Emission StandardEuro 5/EPA4
Make/ModelKUBOTA/D1703
Power/Rotation speed18.5kw (25HP)/2200rpm
TypeIn-line water-cooled, 4-stroke, mechanical pump, naturally aspirated
Max torque97.4N.m/1500rpm
Displacement1.642L
EngineKUBOTA
Other enginesBriggs & Stratton gasoline engine
Maximum Travel speed (High/low)14.2/4.4km/h
Width of steel track shoe300mm
Final drive2×0.7L
Overall dimension (L×W×H)4915mm×1720mm×2525mm
Axle base (Track length on ground)1670mm
Length of rubber track2154mm
Track gauge1420mm
Minimum Ground clearance295mm
Swing radius at tail860mm
Swing radius at front2538mm
Height of blade350mm
Maximum Digging height4800mm
Maximum Dumping height3406mm
Maximum Digging depth3208mm
Maximum Vertical digging depth2957mm
Minimum swing radius2530mm
Max height when min.swing radius3655mm
Maximum Lifting height of blade365mm
Standard Bucket capacity0.12m³
Swing speed12rpm
Ground pressure32Kpa
Maximum Bucket digging force30.4KN
