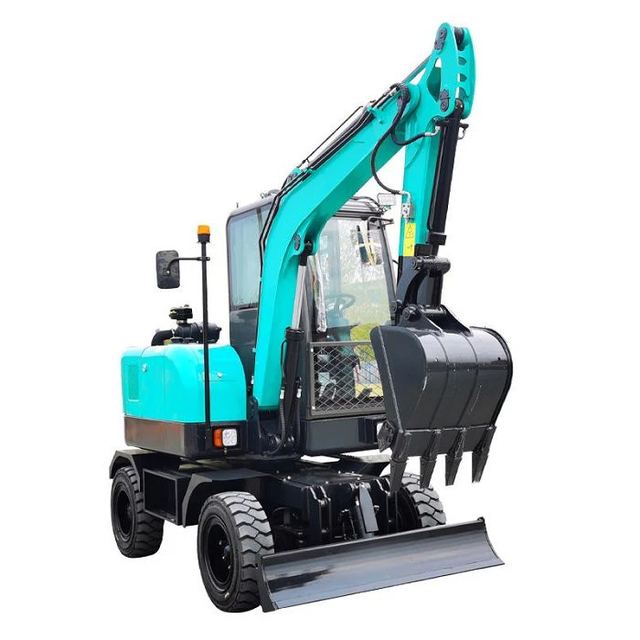

Wheel Excavator
Overview
Wheel Excavator supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Operating weight 4000kg; Digging bucket capacity 0.26cbm; Diesel tank capacity 60L; Hydraulic oil tank capacity 75L. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating weight | 4000kg |
|---|---|
| Digging bucket capacity | 0.26cbm |
| Diesel tank capacity | 60L |
| Hydraulic oil tank capacity | 75L |
| Engine | Laidong 490 or Yanmar |
| Rated power | 37kw/2200r/min |
| Machine length | 4500mm |
| Upper frame/ Chassis width | 1520mm |
| Machine height | 2650mm |
| Platform ground clearance | 557mm |
| Max. Digging depth | 2250mm |
| Max. Digging height | 3900mm |
| Max. Dumping height | 3100mm |
| Max. Digging radius on ground | 1250mm |
| Min. Radius of gyration | 1820mm |
| Max. Lifting height of dozer | 359mm |
| Max. Digging depth of dozer | 268mm |
| Min. Tail swing radius | 1170mm |
| Rated working pressure | 22mpa |
| Walking motor | 2 speed plunger type |
| Swing motor | Variable plunger type |
| Main pump | 32cc plunger type |
| Max. Digging force bucket/arm | 55.6kn (5560iso) |
| Travel speed low/high | 2.7/4.6km/h |
| Swing speed | 9-11r/min |
| Steel tracks pressure on ground | 34.8kpa (0.355kgf/cm2) |
