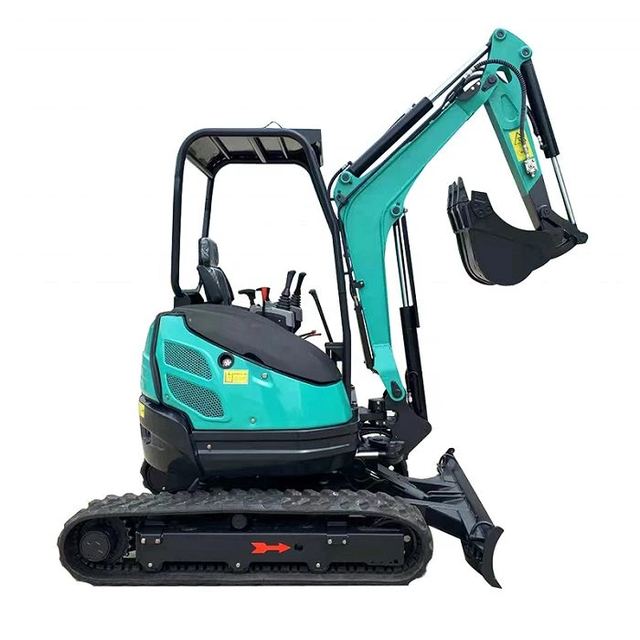

Micro Excavator
Overview
Micro Excavator supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Operating Weight 2500kg; Bucket Capacity 0.07m³; Max. Digging Height 3980mm; Max. Digging Depth 2430mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 2500kg |
|---|---|
| Bucket Capacity | 0.07m³ |
| Max. Digging Height | 3980mm |
| Max. Digging Depth | 2430mm |
| Max. Digging Radius | 4136mm |
| Travel Speed | 2.6/4.5Km/h |
| Certificate | CE ISO9000 |
| Hydraulic Cylinder Brand | Liyuan |
| Hydraulic Pump Brand | Kawasaki |
| Hydraulic Valve Brand | Eaton |
| Engine Brand | Kubota |
| Unique Selling Point | EPA or euro 5 |
| Engine Power | 14/2400 kw/rpm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Marketing Type | New Product 2022 |
| Warranty of core components | 1 Year |
| Core Components | Engine, Gear, Motor, Pump, Gearbox |
| Overall Dimensions(L*W*H) | 3850*1300/ 1500*2380(mm) |
| Track Width(mm) | 230(mm) |
| Min.Turning Radius of work equipment | 1850(mm) |
| Min.Turning Radius of Tail | 750(mm) |
| Max. Digging Radius at Ground Level | 4100(mm) |
| Maximum flow | 1.216L/cc |
| Hydraulic System Pressure | 20.6(MPa) |
| Max. Digging Force | 19.5kn |
