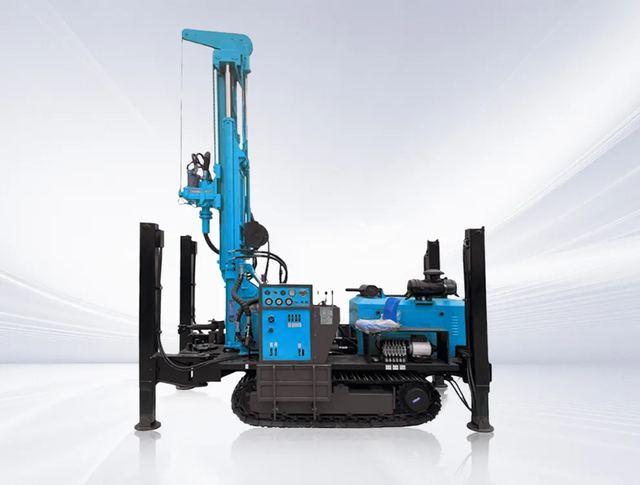

200m Water Well Drilling Rig MWX200
Model MWX200I
Overview
200m Water Well Drilling Rig MWX200, from D Miningwell in Quzhou, Zhejiang. Published figures include item MWX200I, weight 4.7T and drill pipe length 1.5m 2.0m 3.0m.
Technical specifications
| Item | MWX200I |
|---|---|
| Weight | 4.7T |
| Drill pipe length | 1.5m 2.0m 3.0m |
| One-time advance length | 3.3m |
| Walking speed | 2.5km/h |
| High leg stroke | 1.4m |
| Swing speed | 45-70rpm |
| Rig lifting force | 13T |
| Rapid rise speed | 30m/min |
| Fast feeding speed | 60m/min |
| Width of loading | 2.6m |
| Hoisting force of winch | 1.5T |
| Swing torque | 3400-4700N.m |
| Dimensions | 3950* 1750* 2250mm |
| The penetration efficiency | 10-35m/h |
| The engine brand | Yuchai |
| Engine power | 58kW |
