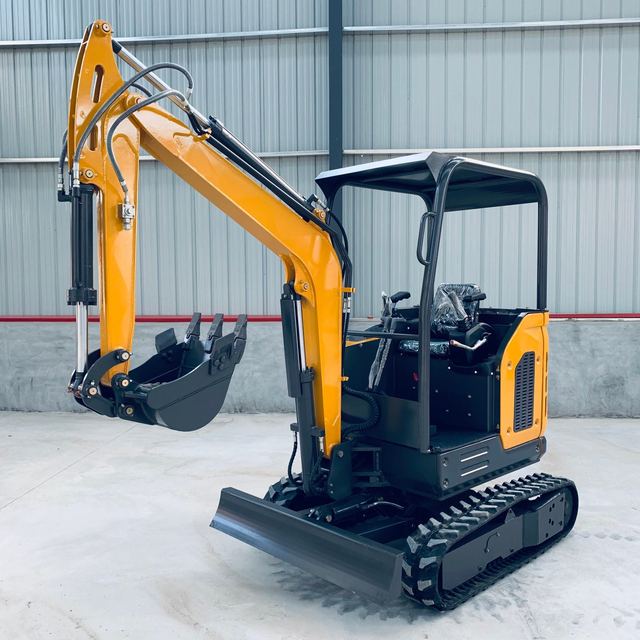

2.5-Ton Small Excavator

Model D1105

2.5-Ton Small Excavator

Overview

2.5-Ton Small Excavator, listed by SHANDONG GONGWO MACHINERY CO., LTD in Laizhou, Shandong. The listing gives emission standard Euro 5 / EPA4, engine KUBOTA and make Japan KUBOTA D1105 engine.

Technical specifications

Emission StandardEuro 5 / EPA4
EngineKUBOTA
MakeJapan KUBOTA D1105 engine
Power (Rotation speed)14KW
Standard Bucket capacity0.06m³
Swing speed9 rpm
Maximum Bucket digging force14KN
Maximum Arm digging force10KN
Hydraulic system pressure18Mpa
Operating weight2500kg
Overall dimension (L W H)3665mm 1050mm 2260mm
Axle base(Track length on ground)1230mm
Track gauge820mm
Min.Ground clearance210mm
Swing radius at tail955mm
Maximum Digging height3365mm
Maximum Dumping height2385mm
Maximum Digging depth2050mm
Maximum Vertical digging depth1725mm
Maximum Digging radius3860mm
Minimum swing radius1720mm
Maximum Lifting height of blade230mm
