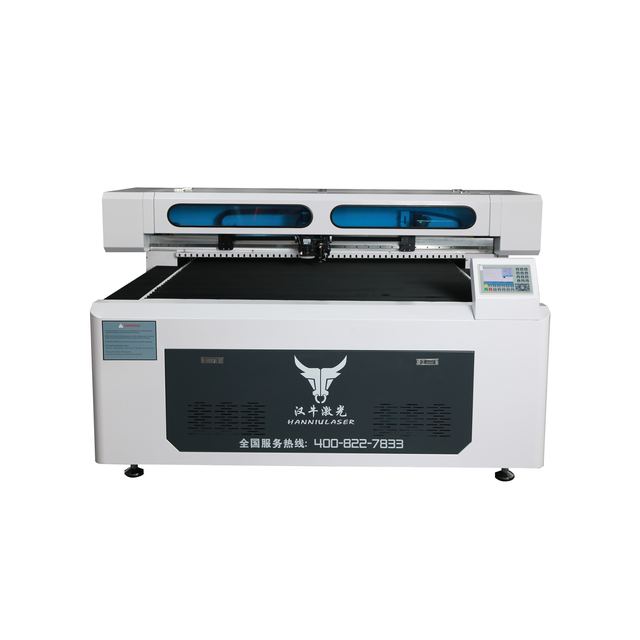

1325 Acrylic Laser Cutting Machine CO2 Laser Machine Wood Leather Plastic 150w 300w 500w
Model AKC1325
Overview
1325 Acrylic Laser Cutting Machine CO2 Laser Machine Wood Leather Plastic 150w 300w 500w supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Engraving Area 1300*2500mm; Laser power 150w; Engraving speed 0-64000mm/min; Resolution 0.025mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Engraving Area | 1300*2500mm |
|---|---|
| Laser power | 150w |
| Engraving speed | 0-64000mm/min |
| Resolution | 0.025mm |
| Minimum shaping character | Chinese Character:2mm/Letter:1mm |
| Resetting Positioning accuracy | ±0.01mm |
| Operating temperature | 0-45°c |
| Operating humidity | 5%-95%(free of condensed water) |
| Graphic format supported | BMP.GIF.JPG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF |
| Power supply | AC220V±10%.50Hz/60Hz |
| Cooling method | Water cooling |
| Gross power | <1800w |
| Net weight | 680KG |
| Dimension | 1950mm*3400mm*1150mm |
| Max cutting thickness | 30mm(for acrylic),1.8mm(for stainless steel) |
| Cutting Precision | 0.05mm |
| Effective Working Area | 1.3*2.5m |
| Cooling Mode | WATER COOLING |
| Motor | Leadshine Stepper |
| Technical Parameters | Engraving Area |
