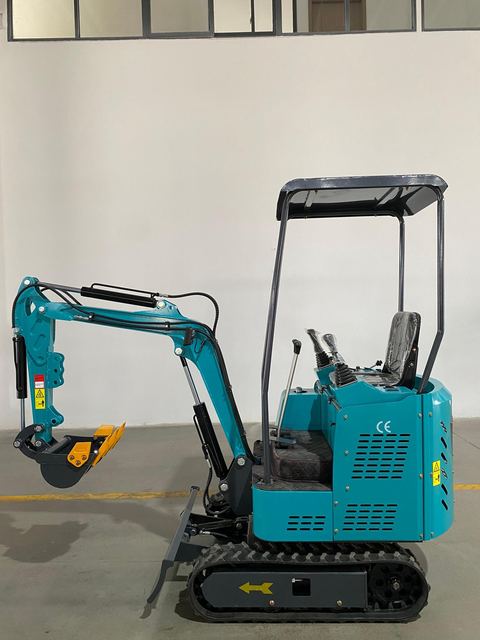

1.5 ton excavator
Model WK15
Overview
1.5 ton excavator supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Excavators. Key published specifications: Operating weight 1500kg; Digging bucket capacity 0.03m³; Bucket width 400mm; Engine KUBOTA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating weight | 1500kg |
|---|---|
| Digging bucket capacity | 0.03m³ |
| Bucket width | 400mm |
| Engine | KUBOTA |
| Other engines | Briggs & Stratton gasoline engine |
| Heat dissipation mode | Three cylinders, water cooled |
| Rated power | 10.2kW |
| Travel speed | 2.5km/h |
| Overall dimension (L W H) | 2450 1100 2200mm |
| Total length of track | 1230mm |
| Platform back turning radius | 740mm |
| Chassis width | 1050mm |
| Track width | 180mm |
| Chassis ground clearance | 135mm |
| Max. Digging depth | 1750mm |
| Max. Digging height | 2650mm |
| Max. Dumping height | 1850mm |
| Max. Digging radius on ground | 2850mm |
| Minimum rotation radius | 1330mm |
