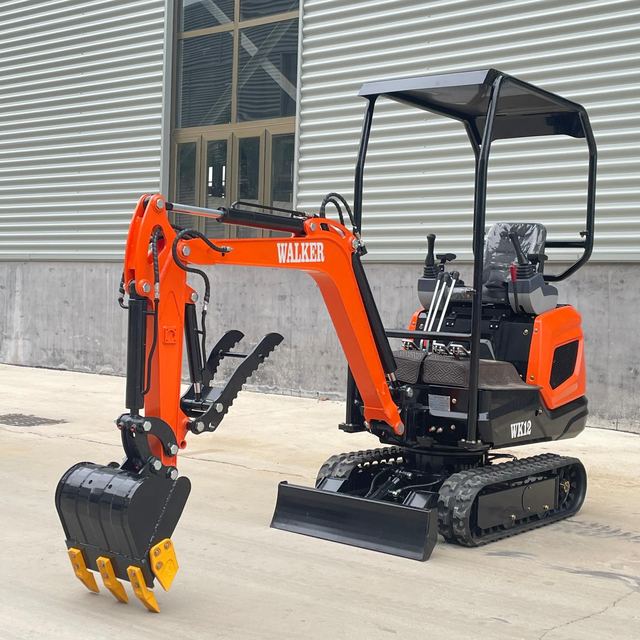

1.2 ton excavator
Model WK12
Overview
1.2 ton excavator supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Excavators. Key published specifications: Operating weight 1200kg; Digging bucket capacity 0.018m³; Bucket width 400mm; Engine KOOP192. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating weight | 1200kg |
|---|---|
| Digging bucket capacity | 0.018m³ |
| Bucket width | 400mm |
| Engine | KOOP192 |
| Heat dissipation mode | Air Cool |
| Rated power | 7KW |
| Optional engine | Kubota D722,10.2kw |
| Chassis width | 934mm |
| Track width | 180mm |
| Minimum ground clearance | 197mm |
| Maximum digging height | 2283mm |
| Maximum unloading height | 1698mm |
| Maximum excavation radius | 2507mm |
| Maximum digging depth | 1436mm |
| Vertical digging depth | 1436mm |
| Minimum radius of tum | 1371mm |
| Turning speed | 3000rpm |
| Working pressure | 16MPa |
