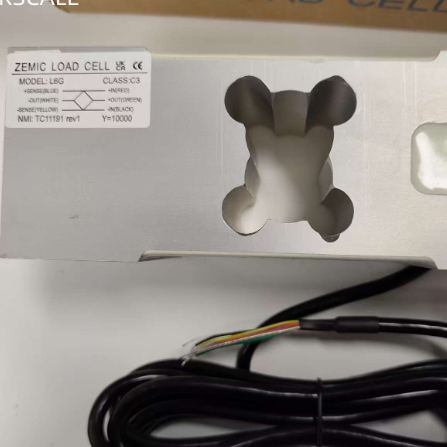

Zemic Force Sensors Load Cells L6G Sensor 500kg 600kg For Bench Platform Weighing Scales
Model L6G
Overview
Zemic Force Sensors Load Cells L6G Sensor 500kg 600kg For Bench Platform Weighing Scales supplied by Changzhou Skyerscale Co. Limited. Key published specifications: Rated Load 50kg~1000kg; Sensitivity (2.0±0.1%) mV/V; Combined Error ±0.03% F.S; Maximum Safe Over Load 150%F.S. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Load | 50kg~1000kg |
|---|---|
| Sensitivity | (2.0±0.1%) mV/V |
| Combined Error | ±0.03% F.S |
| Maximum Safe Over Load | 150%F.S |
| Creep Error(30min) | ±0.03% F.S |
| Ultimate Over Load | 200%F.S |
| Zero Balance | ±1% F.S |
| Recommend Excitation Vol. | 10~12V DC |
| Temp. Effect On Zero | ±0.02% F.S/10℃ |
| Maximum Excitation Vol. | 15V DC |
| Temp. Effect On Span | ±0.02% F.S/10℃ |
| Sealing Class | IP65 |
| Element Material | Aluminum |
| Cable | Length=L:3m |
| Citation | GB/T7551-2008 / OIML R60 |
| Material | Aluminum |
| Output | Analog Sensor |
| Mounting Type | Bolt Screw |
| Certification | CE OIML |
| Length=L | 3m |
