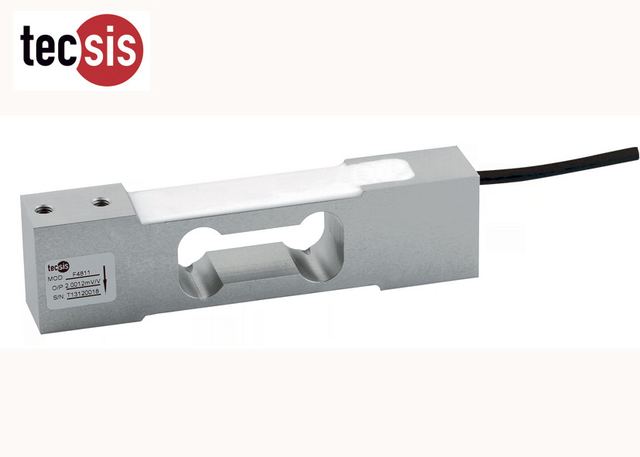

Waterproof High Capacity Force Sensor Load Cell Platform Scales
Model F4811
Overview
Waterproof High Capacity Force Sensor Load Cell Platform Scales supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Single Point Load Cell; Material Aluminum Alloy; Capacity 3kg~100kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 3kg~100kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×1500 mm |
| Platform size | 250×300mm |
| Standard | carton |
| Model | F4811 |
| Technical parameters | Specifications |
