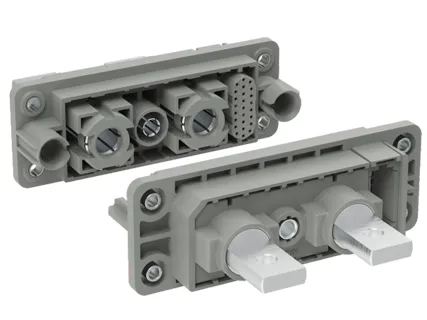

YGC1268-(2+1+25）
Overview
YGC1268-(2+1+25） supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: Current Rating 250A(Power)、80A(PE)、5A(Signal); Voltage Rating 1000V(Power)、50V(Signal) DC; Dielectric Withstanding Voltage 2500V(Power、PE)/500V(Signal) AC 50Hz; Cable specification 80mm²(Power)、16mm²(PE)、0.14-0.5mm²(Signal). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Current Rating | 250A(Power)、80A(PE)、5A(Signal) |
|---|---|
| Voltage Rating | 1000V(Power)、50V(Signal) DC |
| Dielectric Withstanding Voltage | 2500V(Power、PE)/500V(Signal) AC 50Hz |
| Cable specification | 80mm²(Power)、16mm²(PE)、0.14-0.5mm²(Signal) |
| Temperature rise | ≤45K |
| Floating tolerance | ±2mm |
| Mechanical Life | 500 cycles |
| Certification | UL4128 |
