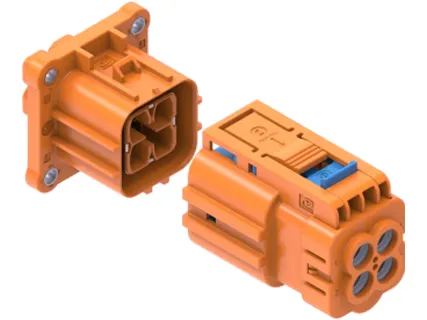

YG1174-4Pin
Overview
YG1174-4Pin supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: PIN distance Power: 10*10; Compatible cable 4mm²/6mm²(LV216 shielded) plugs Receptacle: soldering type; Rated voltage 800V(power); 24V(signal); Rated current 30A(4mm²); 40A(6mm²). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| PIN distance | Power: 10*10 |
|---|---|
| Compatible cable | 4mm²/6mm²(LV216 shielded) plugs Receptacle: soldering type |
| Rated voltage | 800V(power); 24V(signal) |
| Rated current | 30A(4mm²); 40A(6mm²) |
| Insulation resistance | ≥2000MΩ (power), ≥ 1000MΩ (signal) (normal) |
| Withstand voltage | 3000 V(power), 1000 V(signal) (50Hz AC normal) |
| HVIL | Yes |
| Withdraw force | ≤75N |
| Insertion force | ≤75N |
| Locking force | Locking structure ≥ 100N(terminal specification >0.28mm) |
| Life cycle | >50 times |
| Vibration | V2 |
| Shock | V2 |
| Humidity range | 95 %(at 40℃) |
| Salt spray | 96h |
| Altitude requirements | ≤2000m |
| Flame retardant rating | UL94 V-0(plastic), HB(rubber) |
| Environmental requirements | ROHS 2.0 |
| Implementation standard | QC/T 1067.1 |
