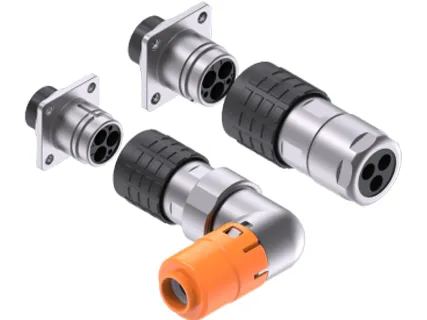

YG982-3Pin
Overview
YG982-3Pin supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: Product model Repositioning diagram; Repositioning angle Connector sleeve color; 45 degrees Black; 90 degrees Red. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Product model | Repositioning diagram |
|---|---|
| Repositioning angle | Connector sleeve color |
| 45 degrees | Black |
| 90 degrees | Red |
| 135 degrees | Yellow |
| 180 degrees | Blue |
| 225 degrees | Green |
| S/P—— Contact type | S: socket, P: pin |
| (2+2)—— Number of power contacts | 2:2pin,3:3pi |
| (2+2)—— Number of signal contacts | 2:2pin |
| P/R—— Connector type | P: plug, R: receptacle |
| ②Signal terminal | 0.5mm² |
| Rated operating voltage | 1000V (power), 2 4V (signal) |
| Insulation resistance | ≥2000MΩ(power ), ≥1000MΩ(signal) (normal) |
| IP rating | IP67&IP6K9K、IPXXB |
| Relative humidity | 95 %(at 40°C) |
