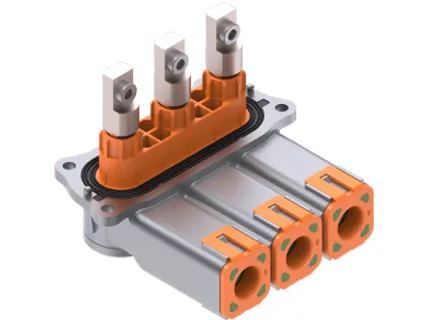

YG196-510-3Pin
Overview
YG196-510-3Pin supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: PIN pitch 35mm; Numbers of pins 3pin; Shell material Metal; Shielding function Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| PIN pitch | 35mm |
|---|---|
| Numbers of pins | 3pin |
| Shell material | Metal |
| Shielding function | Yes |
| Rated voltage | 1000 V DC(power) |
| Rated current | 250A(50mm²) |
| Withstand voltage | 3000 V AC(power) |
| Vibration | USCAR V3 |
| Shock | USCAR V3 |
| Humidity range | 95％(at 40℃) |
| Salt spray | 96h |
| IP rating | IP67、IP6K9K |
| Altitude | ≤5000m |
| Shell | Die-cast aluminum alloy |
| Shielding | Copper alloy |
| Flame retardant rating | UL94 V-0(plastic), HB(rubber) |
| Environment requirements | RoHS 2.0 |
| Maximum supported cable size | 70 mm² (smaller sizes supported); |
