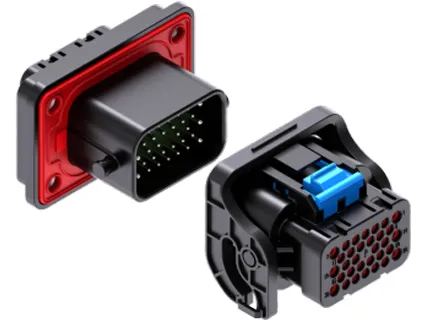

YG1024-32Pin
Overview
YG1024-32Pin supplied by Zhejiang Yonggui Electric Equipment Co., Ltd. Listed under Energy Storage Systems. Key published specifications: Shell material Plastic; Rated voltage 24V DC; Rated current 5A(0.5mm²、0.75mm²)、8A(1mm²)、10A(1.5mm²); Insulation resistance ≥200MΩ(常态/normal state). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Shell material | Plastic |
|---|---|
| Rated voltage | 24V DC |
| Rated current | 5A(0.5mm²、0.75mm²)、8A(1mm²)、10A(1.5mm²) |
| Insulation resistance | ≥200MΩ(常态/normal state) |
| Withstand voltage | 1000 V(500HZ AC normal state) |
| Mating cycle | ≥50 Times |
| Humidity range | 95％(at 40℃) |
| Salt spray | 96h |
| IP rating | IP67&IP6K9K |
| Shell | PA66 |
| Flame retardant rating | UL94 V-0(plastic) |
| Environment requirements | RoHS 2.0 |
| Φ1.6 Contact pin removal tool model | RTSCA-18 (Code: 499000000152) |
| Φ1 Contact pin removal tool model | RTSCA-09 |
