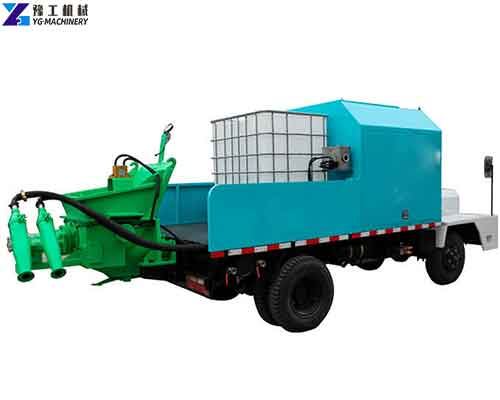

Wet Shotcrete Machine
Overview
Wet Shotcrete Machine supplied by YG Machinery. Listed under Excavators. Key published specifications: Production Capacity 3-7m³/h; Max.System Pressure 16Mpa; Maximum Aggregate Diameter 15mm; Air pressure 0.4-0.6MPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Production Capacity | 3-7m³/h |
|---|---|
| Max.System Pressure | 16Mpa |
| Maximum Aggregate Diameter | 15mm |
| Air pressure | 0.4-0.6MPa |
| Total Weight | 2300kg |
| Overall Dimension(L*W*H) | L3450*W1550*H1650mm |
| Maximum Conveying Distance | 125/50m(Horizontal/Vertical) |
| Main Motor Power | 22kw |
| Lubrication System | Manual+Automatic |
| Hydraulic Oil Cooling | Air Cooling |
| Concrete distribution valve | S tube Valve |
| Cylinder Diameter*Stroke | 140*580mm |
| Hopper Capacity | 0.3m3 |
| Concrete Slump | 12-18cm |
| Dust Concentration | <6mg/m3 |
| Feeding Height | 1.1m |
| Fuel Tank Capacity | 145L |
| Voltage Classes | 380V |
| Inner Diameter of Conveying Pipe | Φ57mm |
