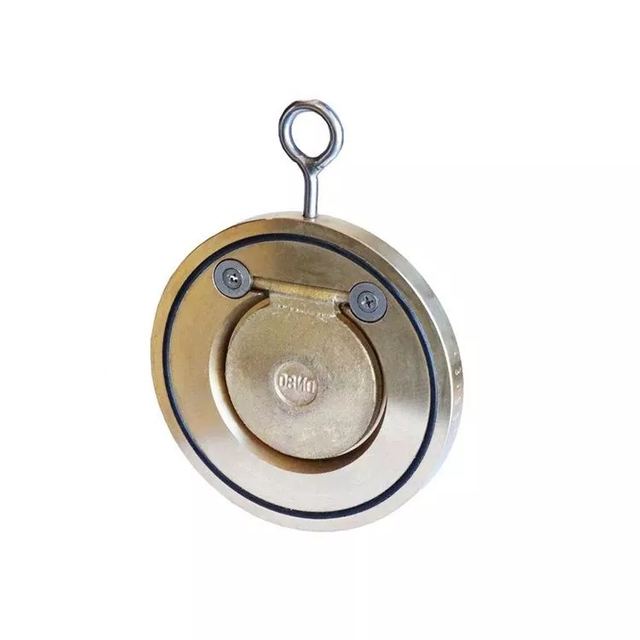

Wafer Type Ball Check Valve
Overview
Qingdao Wivo Valves Co., Ltd in Guangzhou, Guangdong lists Wafer Type Ball Check Valve under Check, Ball Type Valves. The listing gives size range DN50-DN600(2"-24"), pressure rating PN10/16,ANSI Class 150 and bodymaterial Cast Iron,Ductile Iron,Stainless Steel.
Technical specifications
| Size Range | DN50-DN600(2"-24") |
|---|---|
| Pressure Rating | PN10/16,ANSI Class 150 |
| BodyMaterial | Cast Iron,Ductile Iron,Stainless Steel |
| Ball Material | NBR,EPDM,Stainless Steel |
| Temperature Range | -10℃ to 120°℃(14°F to 248°F) |
| Connection Type | Wafer,fits between flanges |
