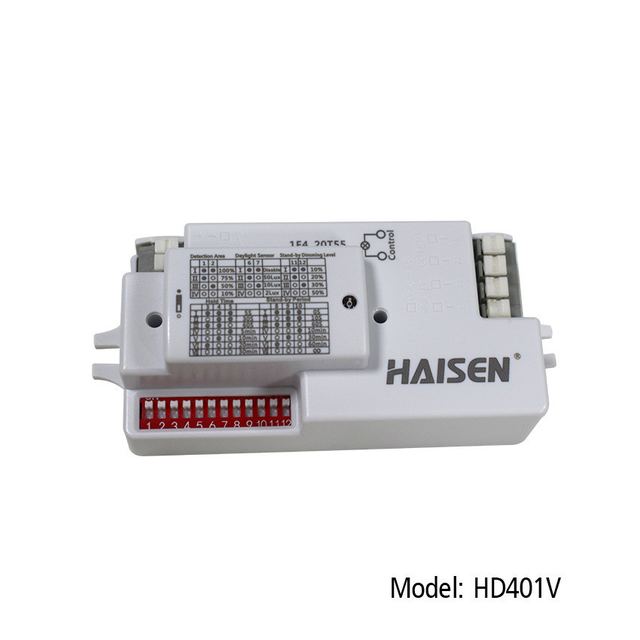

UL FCC 1V 10V Dimmable Motion Sensor Planner Antenna DIP Switch
Model HD401V
Overview
Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong lists UL FCC 1V 10V Dimmable Motion Sensor Planner Antenna DIP Switch under Switches. Certification UL FCC RoHS, operating voltage 120-277VAC,50Hz/60Hz and stand-by power ≤1w are among the specifications published.
Technical specifications
| Certification | UL FCC RoHS |
|---|---|
| Operating voltage | 120-277VAC,50Hz/60Hz |
| Stand-by power | ≤1w |
| Control method | on/off /1-10v dimming |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Hold time | 5s/30s/1min/5min/10min/20min/30min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Stand-by period | 0s/10s/1min/10min/30min/1H/∞ |
| Interfaces | 6-pole pluggable clamp temminal(L,N,N,L',1-10V+,1-10V-)for 0.75-1.5mm² cable |
| Mounting height | 2.5-6m /8.2-19.68ft |
| Deteation range | Max.ø14m/45.93ft |
| Motion detection | 0.5–1,5m/s |
| IP rating | IP 20 |
| Input Voltage | 120-277VAC 50Hz/60Hz |
| Size | 103*45*31mm |
| Operating Temperature | -20°C~+55°C |
| Installation Method | Application Demo |
