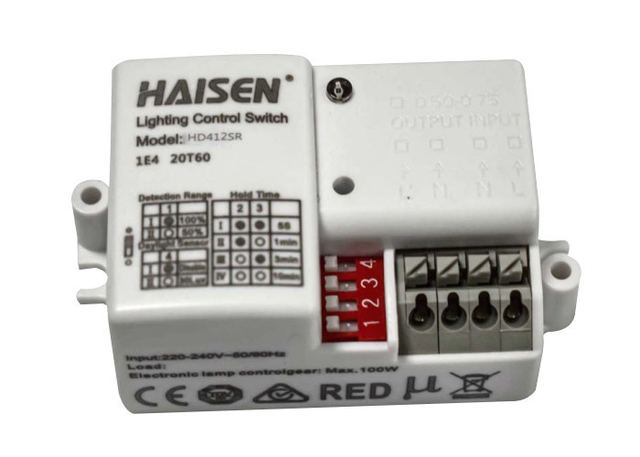

120VAC Ceiling Mounted Motion Sensor Microwave With Dip Switch
Model HD412S
Overview
120VAC Ceiling Mounted Motion Sensor Microwave With Dip Switch supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE RoHS; Operating voltage 120VAC 50/60Hz; Switching capacity Max.100W; Stand-by power <0.5W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE RoHS |
|---|---|
| Operating voltage | 120VAC 50/60Hz |
| Switching capacity | Max.100W |
| Stand-by power | <0.5W |
| Hold time | 5s/60s/3min/10min |
| Daylight threshold | 30Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <1mW |
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 0.75-1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø12m(ceiling mounted);Max.10m(wall mounted) |
| Operating temperature | -25°C~+60°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
