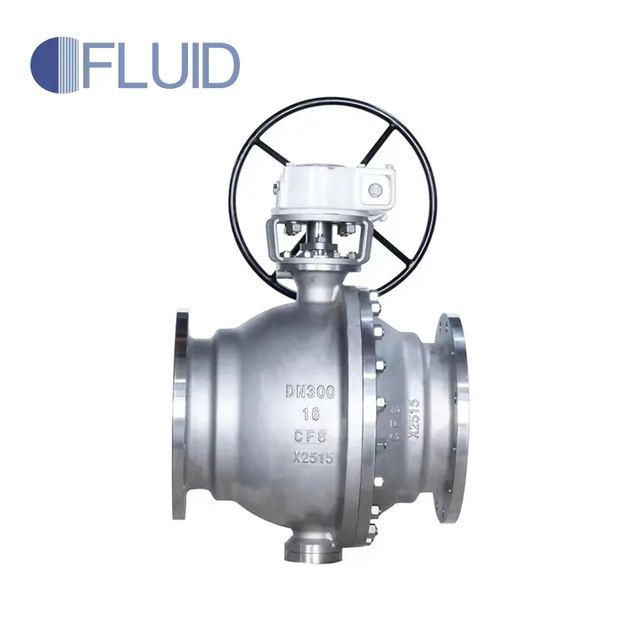

Trunnion Mounted Ball Valve
Overview
Trunnion Mounted Ball Valve, listed by Zhejiang Centro Flow Control Co., Ltd in Wenzhou, Zhejiang. Published figures include parts MATERIAL, body type Flanged (RF, RTJ), Buttweld and body CS, SS, Duplex SS.
Technical specifications
| Parts | MATERIAL |
|---|---|
| Body Type | Flanged (RF, RTJ), Buttweld |
| Body | CS, SS, Duplex SS |
| Ball | CS + ENP, CF8M, CF3M, Duplex SS |
| Seat | RTFE, PEEK, Devlon, Nylon, Viton |
| Seat Seal | HNBR, FKM |
| Size Range | 2" to10“ (DN 50-DN350) |
| Pressure Rating | Class 150 - 1500 Full and Reduced Bores |
| Design Standard | API 6D, ASME B16.34 |
| Testing Standard | API 6D, API 598, ISO 5208 |
| Connections | ISO 5211 top connection |
