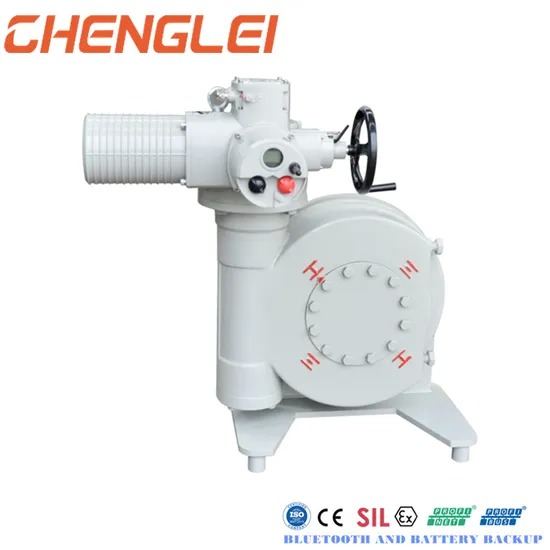

Long Stroke Acme Screw Electric Linear Quarter Turn Electric Valve Actuator for Ball Valve
Overview
Long Stroke Acme Screw Electric Linear Quarter Turn Electric Valve Actuator for Ball Valve supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Connection Flange; Material Aluminum Alloy; Thermal Protection Yes; Bluetooth Connection Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Connection | Flange |
|---|---|
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Control Method | On-off Or Modulating |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Protection Grade | IP65/IP67/IP68 |
| Insulation Level | F Level |
| Voltage Options | 380V/110V/220V/440V/660V AC or 12V/24V DC (Single/Three phase) |
| Control Methods | On/Off or Modulating (4-20mA) |
| Connection Types | JB2920 Torque or ISO5210 (GB/T 12222) Thrust flange |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Temperature Range | -20°C to +60°C (special orders -60°C to +70°C) |
| Humidity Tolerance | ≤95% at +25°C |
