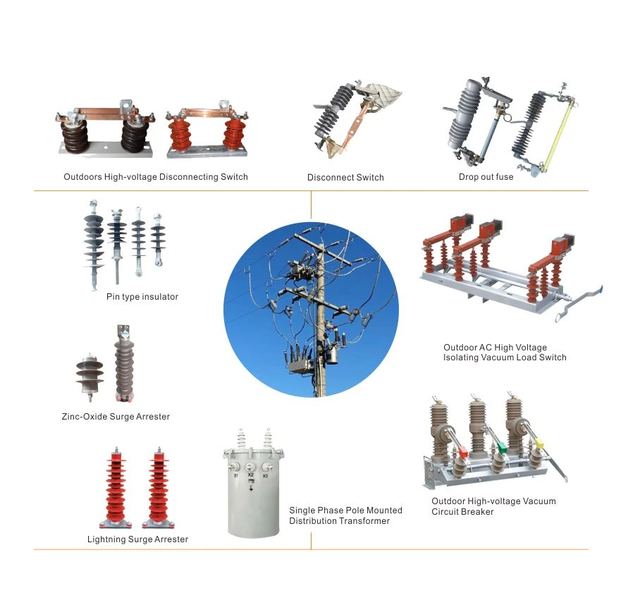

Transmission Line Accessories
Model SK2 27-33KV
Overview
Transmission Line Accessories supplied by Wenzhou Shuowei Electric Co., Ltd. Listed under Transformers. Key published specifications: Rated Volatge 12KV 24KV 36KV; Rated Voltage 27-33kv; Rated Current 100/200kA; Weight 15kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Volatge | 12KV 24KV 36KV |
|---|---|
| Rated Voltage | 27-33kv |
| Rated Current | 100/200kA |
| Weight | 15kg |
| Production Capacity | 2000PCS/Month |
| System Voltage | 35 kV (Max 40.5 kV) |
| Rated Voltage (Ur) | 36 kV / 42 kV |
| Continuous Operating Voltage (Uc) | 29 kV / 34 kV |
| Nominal Discharge Current | 10 kA |
| Lightning Residual Voltage | ≤ 100 kV... |
| Rated System Voltage | 24 kV |
| Rated Arrester Voltage (Ur) | 21 kV (Typical) |
| Nominal Discharge Current (In) | 5 kA / 10 kA |
| Arrester Rating (Ur) | 17 kV |
| Continuous Voltage (Uc) | 13.6 kV |
| Discharge Current (In) | 5 kA (standard) / 10 kA (critical) |
| Residual Voltage | ≤ 50 kV |
| Interface | M16 thread... |
| Type | 24kV European-Style Front and Rear Connectors |
| Power Frequency Withstand Voltage | Higher (usually... |
