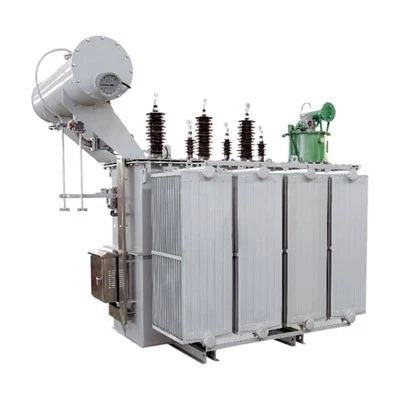

Transformer
Overview
Transformer supplied by Zhejiang Gangheng Electric Company Limited. Listed under Switchgear. Key published specifications: Rated High Voltage 10kV; Rated Low Voltage 0.4kV; Rated Capacity 1250kVA; Connection Symbol Dyn11. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated High Voltage | 10kV |
|---|---|
| Rated Low Voltage | 0.4kV |
| Rated Capacity | 1250kVA |
| Connection Symbol | Dyn11 |
| No-Load Loss | ≤1.2kW |
| Load Loss (120% load) | ≤6.8kW |
| Cooling Method | AN/AF (Forced Air Cooling) |
| Insulation Level | 170kV/3s |
| Protection Class | IP30 |
| Application Scope | Suitable for 50Hz, 6-10kV grids with rated capacities |
