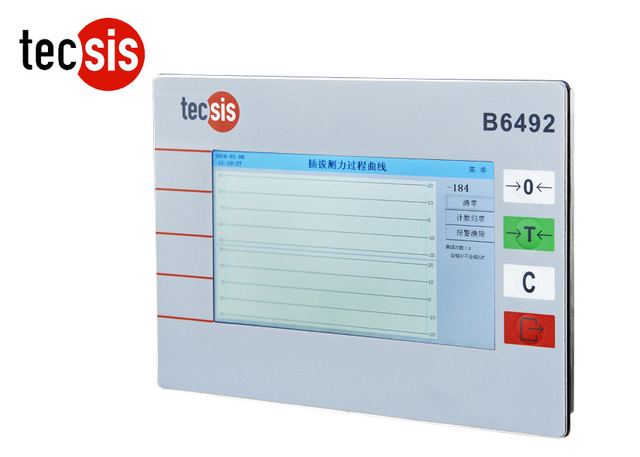

Touch Screen Force Display Weighing Scale Indicator Curve Display
Model B6492
Overview
Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong lists Touch Screen Force Display Weighing Scale Indicator Curve Display under Direction Indicator Displays. Published figures include structure Compact, display type Touch Screen and type Platform Scale Indicator.
Technical specifications
| Structure | Compact |
|---|---|
| Display Type | Touch Screen |
| Type | Platform Scale Indicator |
| Power supply | 24VDC+/-20% |
| Maximum power consumption | 5W |
| 1 weighing signal input | 0~39mV |
| Excitation voltage output | 5VDC |
| Acquistition frequency | ≤4800Hz |
| Zero drift | ±0.1μV/ºC RTI |
| Gain drift | ±5ppm/ºC |
| Accuracy | 0.1% F.S. |
| Digital input | 2DI |
| Digital output | 4DO, |
| Communication interface | RS232 or RS485/Intel networks |
| Operation temperature range | -10ºC~+60ºC |
| Storage temperature | -30ºC~+80ºC |
| Relative humidity | ≤85%RH |
| Protection class | IP54 |
| Weight | 1.4kg |
| Standard | carton |
| Technical parameters | Specifications |
