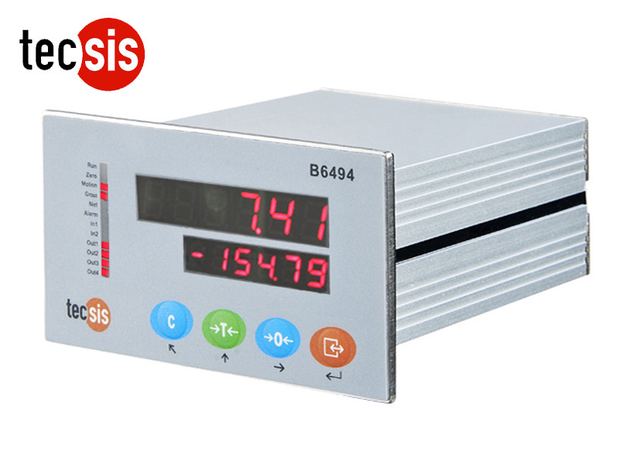

Multi Function Digital Weighing Indicator Load Cell Signal Display
Model B6494
Overview
Multi Function Digital Weighing Indicator Load Cell Signal Display, listed under Direction Indicator Displays by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. Published figures include structure Compact, display type LED and type Platform Scale Indicator.
Technical specifications
| Structure | Compact |
|---|---|
| Display Type | LED |
| Type | Platform Scale Indicator |
| Power supply | 24VDC±20% |
| Maximum power consumption | 3W |
| 1 weighing signal input | 0~39mV |
| Excitation voltage output | 5VDC |
| Maximum sampling frequency | 1000Hz |
| Zero drift | ＜0.1μV/ºC RTI |
| Gain drift | ±5ppm/ºC |
| Accuracy class | 0.1% F.S. |
| Digital input | 2DI |
| Digital output | 4DO |
| Analog output | 4-20mA;0-5V;0-10V |
| Analog output accuracy | 12bit |
| Analog adjust mode | Digital adjust |
| Communication interface | RS232 or RS485 |
| Operation temperature range | -10ºC~+60ºC |
| Storage temperature | -30ºC~+80ºC |
| Relative humidity | ≤85%RH |
| Protection class | IP65 |
| Weight | 0.44kg |
| Standard | carton |
| Technical parameters | Specifications |
